PRODUK

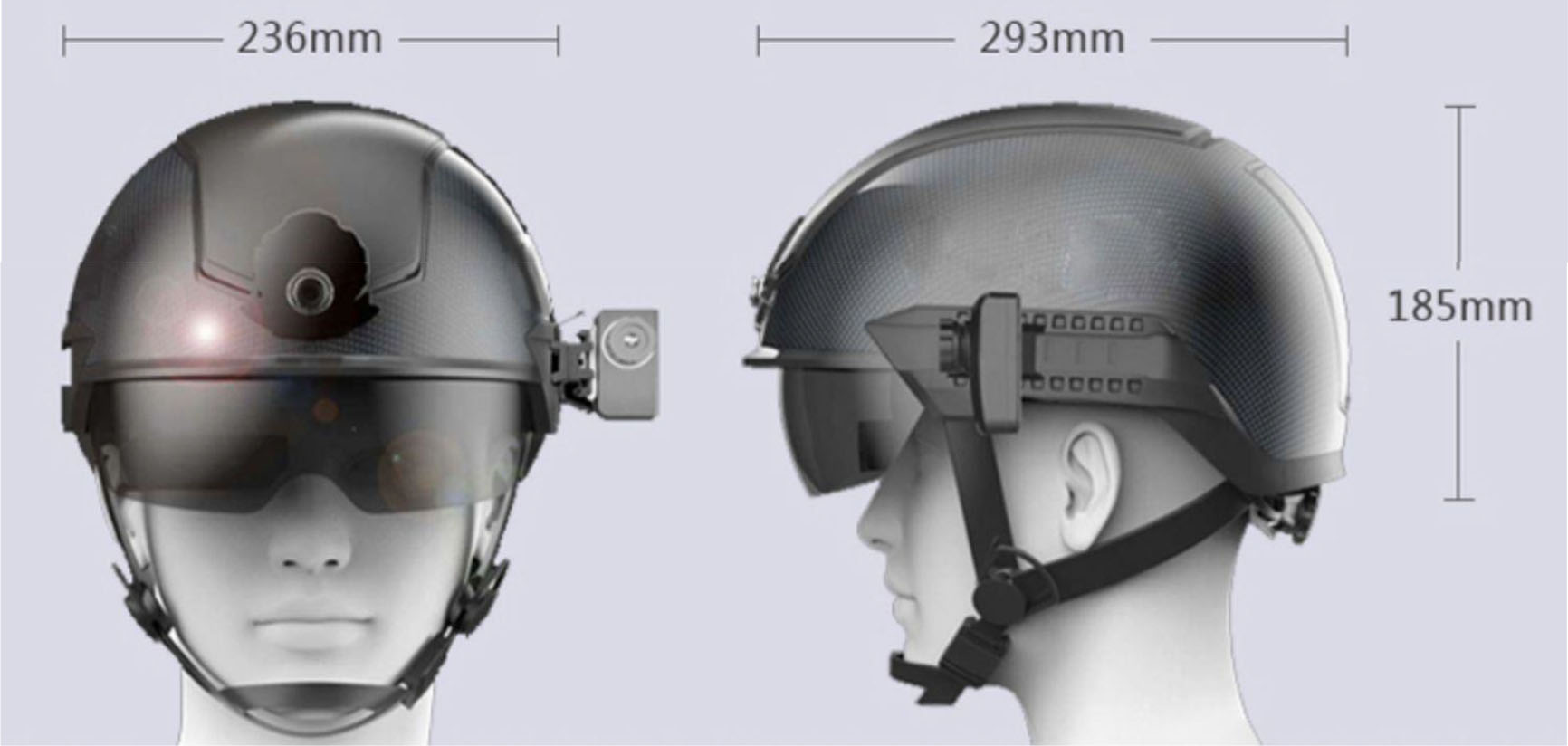

AR Thermal Helmet HM-101

Harga : Rp. 188.000.000,- (Hubungi Kami!, untuk informasi lebih lanjut)

Helm Pendeteksi Suhu Tubuh dengan teknologi Augmented Reality

  • Teknologi AI Terkini dibalut dalam material ekstra kuat
  • Visor berstandar jet tempur
  • Terdapat pilihan mode penggunaan
  • Infrared Thermal Imaging untuk pengukuran suhu non-induktif dari jarak jauh dengan tingkat efesiensi pengukuran suhu sekitar 200 orang/menit
  • Dapat digunakan di berbagai tempat yang menjadi pusat-pusat keramaian (Bandara, Stasiun KA, Jalan Raya, Pertokoan, Taman Hiburan, Rumah Sakit, Perkantoran, dll)
Specification
Basic Information

Processor

ARM Cortex A53 Octacore 2.5 GHz

Operating System

Android 8.1

RAM

DDR 4GB

Memory

eMMC 64GB

Weight

1135 gram

AR Display Module

Display

Array type optical waveguide display

Resolution

1280x720

Field of view

35°

Virtual screen size

Equivalent to watching 74-inch

Rate brightness

300 nit

Infrared Thermal Imaging Module

Resolution

384x288

Response band

8µm-14µm

Image frequency frame

25Hz

Temperature measurement range

-20°C~120°C

Temperature measurement accuracy

±0.3°C within the specified range (2m by default)

Visible Light Camera Module

Maximum Pixels

13 megapixels

Maximum aperture

F2.0

Field of view

78°

Video Resolution

1080P@30fps

Data Communication Module

Internet

Supporting 4G TDLTE, 4G LTE FDD, 3G WCDMA, 2G GSM

Wi-Fi

IEEE 802.11b/g/n, 2.4 GHz

GPS

Supporting GPS/AGPS/GLONASS/BeiDou

Bluetooth

BT 4.2 backward compatible with3.0, 2.1, supporting BLE

Baterry Module

Capacity

5000mAh

Voltage

DC3.7~4.2V

Charging voltage

DC5.0V±5%

Quick charge

Supporting 2A fast charging

Protective Performance

Absorbing collision energy

RF electromagnetic field radiated susceptibility

Penetration resistance

Complying with the requirements of penetration resistance test in GA 296-2001

Electromagnetic shielding

SAR value < 0.05W/kg

ESD anti interference

Complying with the requirements of ESD anti interference in GB/T 17626.2-2006

Rf electromagnetic field radiated susceptibility

Complying with the requirements of ESD anti interference in GB/T 17626.2-2006
